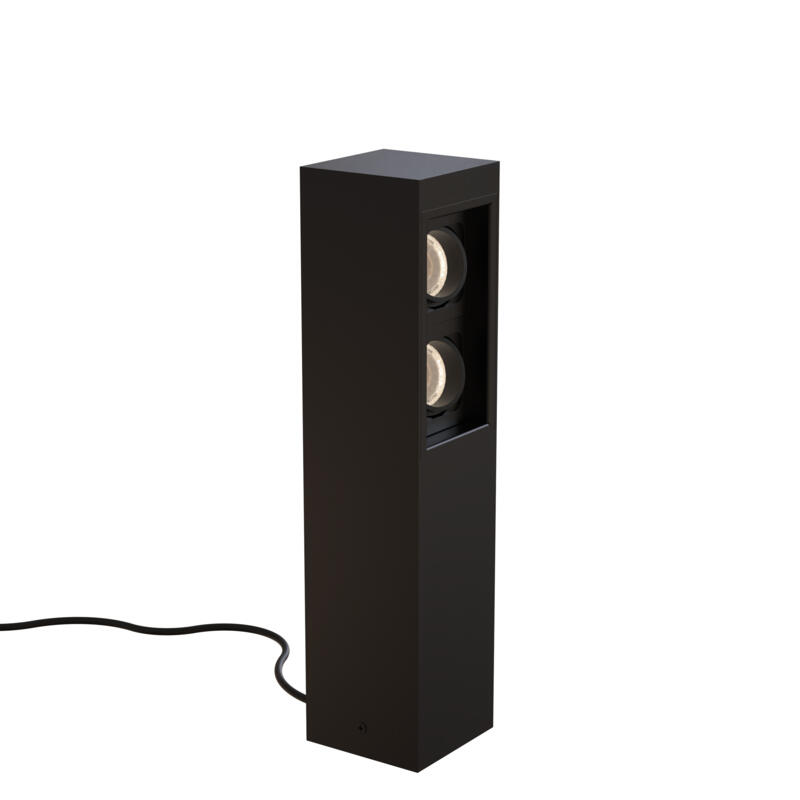

1742/.. - BETAPLUS
Technical information |
|
---|---|
Use type | Interior |
Fixation type | Table |
Directional type | directional in both planes |
Dimensions | 90x90x386 mm |
Fixture dimension | 90x90 mm |
IP protection rating | IP20 |
Voltage | ~230V |
Type of transformer | WithTransfo |
Fixture class | fixture class 1 |
Lamptype | 2x QR-CB 51 GU5,3/GX5,3 max. 50W |
Energy efficiency max | E |
Energie efficiency min | A+ |
Quantity | 2 |
Voltage | 12V |
BETAPLUS – BUILT-UP
BetaPlus is an addition to the Beta System range, consisting of several surface-mount lighting fixtures, such as ceiling lights, wall lights and floor lamps.
The following options can be obtained:
- fixed ceiling lights: 1, 2 and 3 modules
=> Dicro 50W - 12V, ES50 50W - 230V, low-energy light bulb Megaman 11W - 230V;
1 module also: ES63 75W - 230V
- directional ceiling lights: 1 and 2 modules
=> Dicro 50W - 12V, ES50 50W - 230V
- fixed ceiling lights with glass:
=> 1 & 2 modules: Dicro 50W - 12V, ES50 50W - 230V, low-energy light bulb Megaman
11W - 230V
=> 3 modules: Dicro 50W - 12V, ES50 50W - 230V, low-energy light bulb Megaman
11W - 230V, TC-D 26W - 230V
There are also several options for the wall lights:
- fixed wall lights:
=> 1 module: ES50 50W - 230V, low-energy light bulb Megaman 11W - 230V,
ES63 75W - 230V
=> 2 modules: ES50 50W - 230V, low-energy light bulb Megaman 11W - 230V
- directional wall lights: 1 and 2 modules
=> 1 module: ES50 35W - 230V (1 module also 360° directional - ES50 50W - 230V)
=> 2 modules: ES50 35W - 230V
- fixed wall lights with glass: 1, 2 and 3 modules
=> 1 and 2 modules: ES50 35W - 230V
=> 3 modules: TC-D 26W - 230V
The floor lamps of BetaPlus are available with 2 and 3 modules
Also available with 1 module as table lamp, 360° directional.
All types are directional and designed for halogen lamps QR-CB 51 GU5,3 - 50W.
Connection to 230V with incorporated transformer.
